Specifications
-

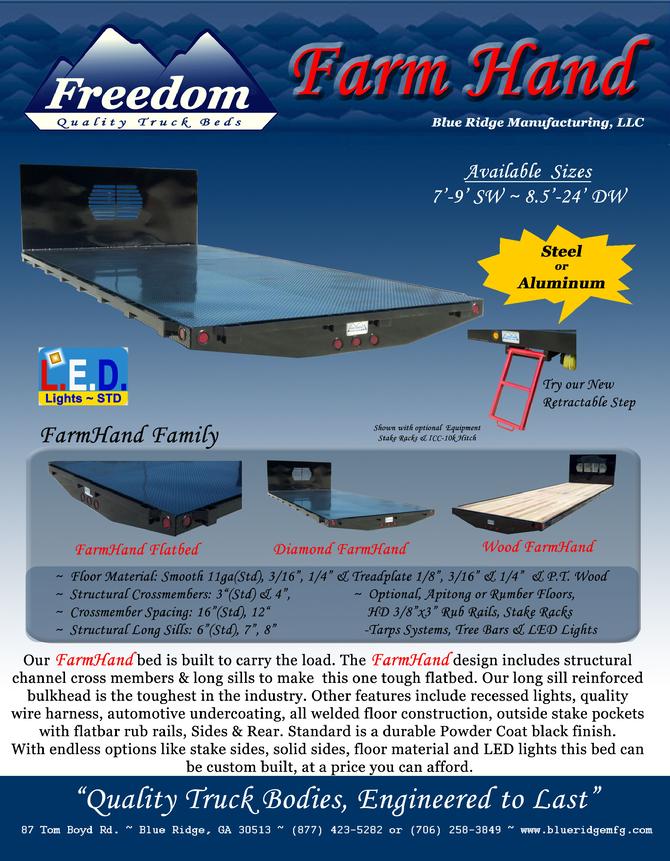

Farmhand Flatbed, Available 8,9,10,11,12,14,16,18,20,22,26' {FH12}
-
Floor: Smooth 11ga.(Std), 3/16" 1/4" & Treadplate 1/8", 3/16", 1/4" & PT Pine, Apitong, Rumber
-
Structural Crossmembers: 3"(Std) 4" on 12'-26' HD Bodies
-
Crossmember Spacing: 16”(Std), Optional 12"
-
Structural channel long rails: 6"(Std), Optional 7", 8"
-
Outside Stake Pockets w/HD 3/8"x3" Rub Rail, Sides & Rear
-
Gas Fill cut outs, semi-blanked Ford, Chevy Dodge
-
42” Bulkhead with large slotted window, 48" on beds 18' & Larger
-
(Many Optional Bulkhead styles and sizes)
-
3/16” smooth steel drop center tail skirt w/ recessed LED marker lights
-
Bulkhead reinforced to long sills
-
Adjustable universal bolt on mud flap brackets
-
Asphalt Undercoating
-
FMVSS-108 lighting compliant
-
Modular wire harness w/ recesses shock mounted LED sealed lamps
-
Shot blasted, Zirconium Phosphate & steam pre-treatment
-
High Gloss PPG Black Powder Coat Finish
-
Complete mounting hardware kit w/ shear plates included
|
|
