Specifications
-

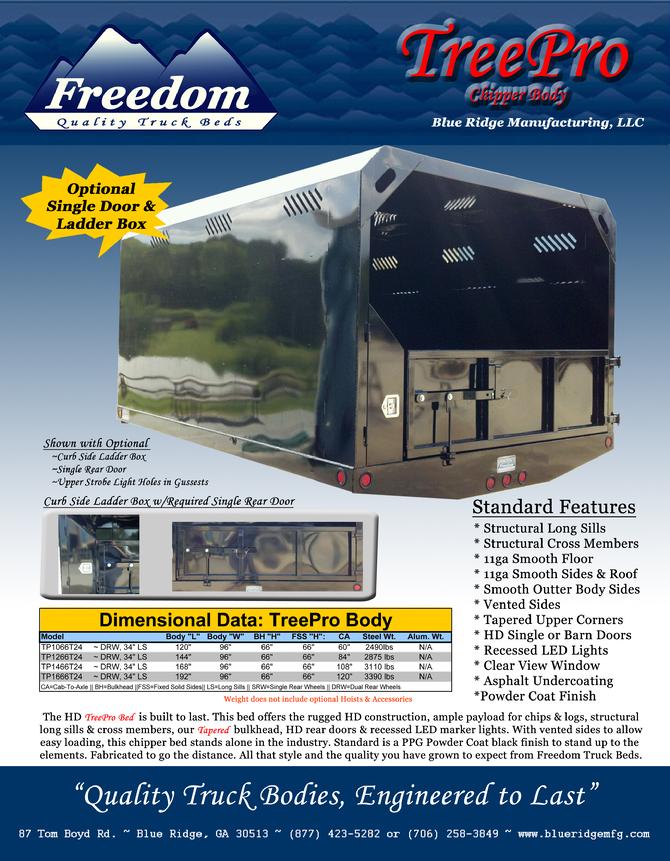

TreePro Chipper Body, Available 10,12,14,16 & Specials {TP1066T24}
-
Floor: 11ga.(Std) Optional 10ga, 3/16" or 1/4"
-
Structural Crossmembers: 3"(Std) 4" on Specials
-
Crossmember Spacing: 16”(Std), Optional 12"
-
Structural channel long rails: 6"(Std), Optional 7", 8"
-
66" Bulkhead, 11ga. smooth plate, Tapered Front
-
HD 66" Smooth Side Out Steel Sides
-
Vented Sides for easy loading
-
Optional: Ladder Box, Curb Side or Road Side, Single Rear Door Required
-
HD 24" Barn Doors, Optional Single Rear Door & Higher Barn Doors
-
3/16" smooth steel drop center tail skirt w/ recessed LED marker lights
-
Bulkhead reinforced to long sills
-
Adjustable universal bolt on mud flap brackets
-
Asphalt Undercoating
-
FMVSS-108 lighting compliant
-
Modular wire harness w/ recesses shock mounted LED sealed lamps
-
Shot blasted, Zirconium Phosphate & steam pre-treatment
-
High Gloss PPG Black Powder Coat Finish
-
Complete mounting hardware kit w/ shear plates included
|
|
