| Click photo for close-up view. |
 |
| Lay-Down Sides |
|
|
 |
| Lay-Down Tailgate |
|
|
 |
| Removable Rear Corner Posts |
|
|
 |
| Recessed Fuel Filler |
|
|
 |
| Recessed Tag Well |
|
|
 |
| Adjustable Ladder Guides |
|
|
 |
| GN Trap Door Closed |
|
|
 |
| GN Trap Door Moving |
|
|
 |
| GN Trap Door Open |
|
|

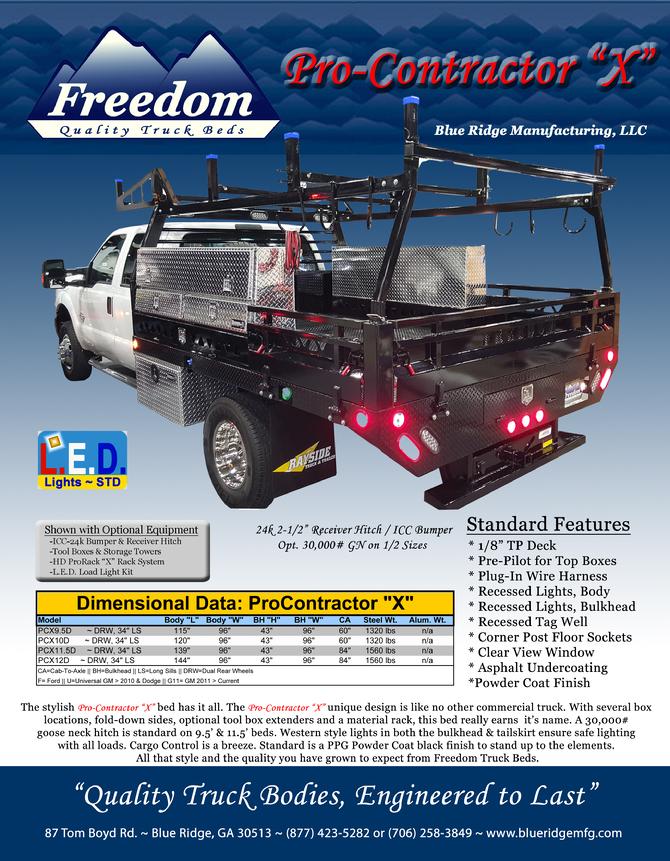

Specifications
- ProContractorX Truck Bed, 9.5’, 10', 11.5’ & 12' {PCX12D-9648}
- HD 1/8” TP Steel Floor (96” Wide DW)
- Custom 3 pc. 15” fold down sides and rear gate. Tubing tie rail.
- Space for customer/distributor installed tool boxes. (Boxes not included)
- All mounting hardware included for sides and tool boxes
- Gooseneck hitch compartment w/trap door and ball mounting plate, 1 1/2” hole, 30,000#
- Gas fill cut outs, Ford, Chevy & Dodge
- Tapered bulkhead with full width louvered window
- Bulkhead lights, 2 LED Stop/Tail/Turn & center mounted back-up lamp
- TP Tail Skirt w/ recessed tag compartment & LED STT lights
- 3” structural channel cross sills on 16” centers (avg)
- 6” structural channel long rails
- Bulkhead reinforced to long sills
- Reinforced wheel well compartment
- PB Basement Storage Box, 6'
- Adjustable bolt on mud flap brackets
- Asphalt undercoating
- Modular wire harness w/ recessed shock mounted sealed lamps
- LLK3 Load Light Kit W/3-Way Switch
- FMVSS-108 lighting compliant
- Shot blasted, Iron Phosphate & steam pre-treatment
- High Gloss PPG Black Powder Coat Finish
- Complete mounting hardware kit w/ shear plates included
|
|
